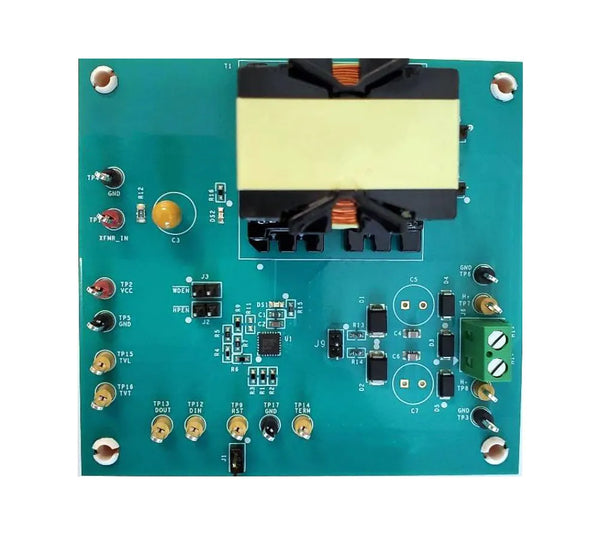

The MAX22565CAEVKIT# is a comprehensive evaluation and development platform for Maxim Integrated's industrial digital isolator and transceiver product lines, supporting the MAX22163–MAX22166, MAX22563–MAX22566, and MAX22663–MAX22666 device families. This kit enables rapid prototyping and validation of isolated digital communication interfaces across isolated gate drivers, RS-485/RS-422 transceivers, and CANbus transceiver configurations. The platform provides breadboarded or PCB-based test points with integrated power delivery, signal routing, and connector interfaces to streamline design integration and performance characterization. Typical applications include industrial motor control, power conversion systems, automotive isolated networks, and factory automation where galvanic isolation and robust noise immunity are required. Compatible with standard development environments and benchtop test equipment.
Tested and guaranteed. Available via quote.
