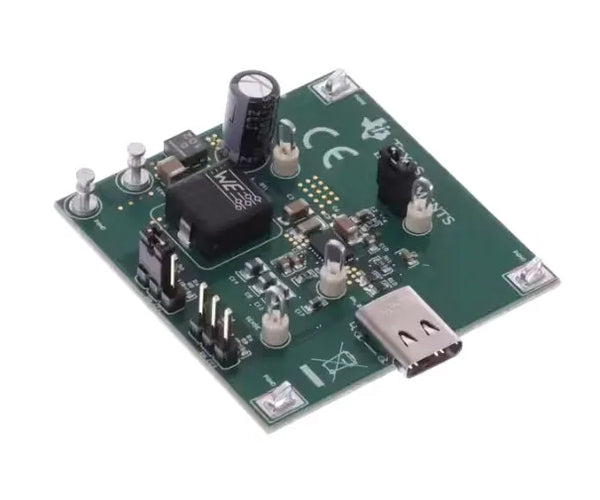

The Texas Instruments TPS25868Q1EVM-162 is an automotive-qualified evaluation board for the TPS25868-Q1 USB power management IC. This board demonstrates the TPS25868-Q1's integrated hot-swap controller and power-distribution switch functionality, designed for USB Type-A and Type-C applications in automotive and industrial environments. The EVM supports evaluation of power sequencing, fault protection, and thermal management features inherent to the TPS25868-Q1, which integrates a high-side MOSFET driver and reverse-polarity protection suitable for 5V USB power rails. The board includes standard test points, connector options for USB Type-A and Type-C inputs, and load terminals for validation of transient response and current limiting behavior. Typical applications include in-vehicle infotainment systems, automotive charging hubs, industrial USB hubs, and other 12V/24V systems requiring robust USB power management.
This evaluation board is ideal for design engineers prototyping power delivery circuits, validating hot-plug sequences, and confirming electromagnetic compatibility across automotive temperature and voltage ranges. The TPS25868-Q1 device carries AEC-Q100 Grade 1 qualification for automotive use.
Tested and guaranteed. Available via quote.
