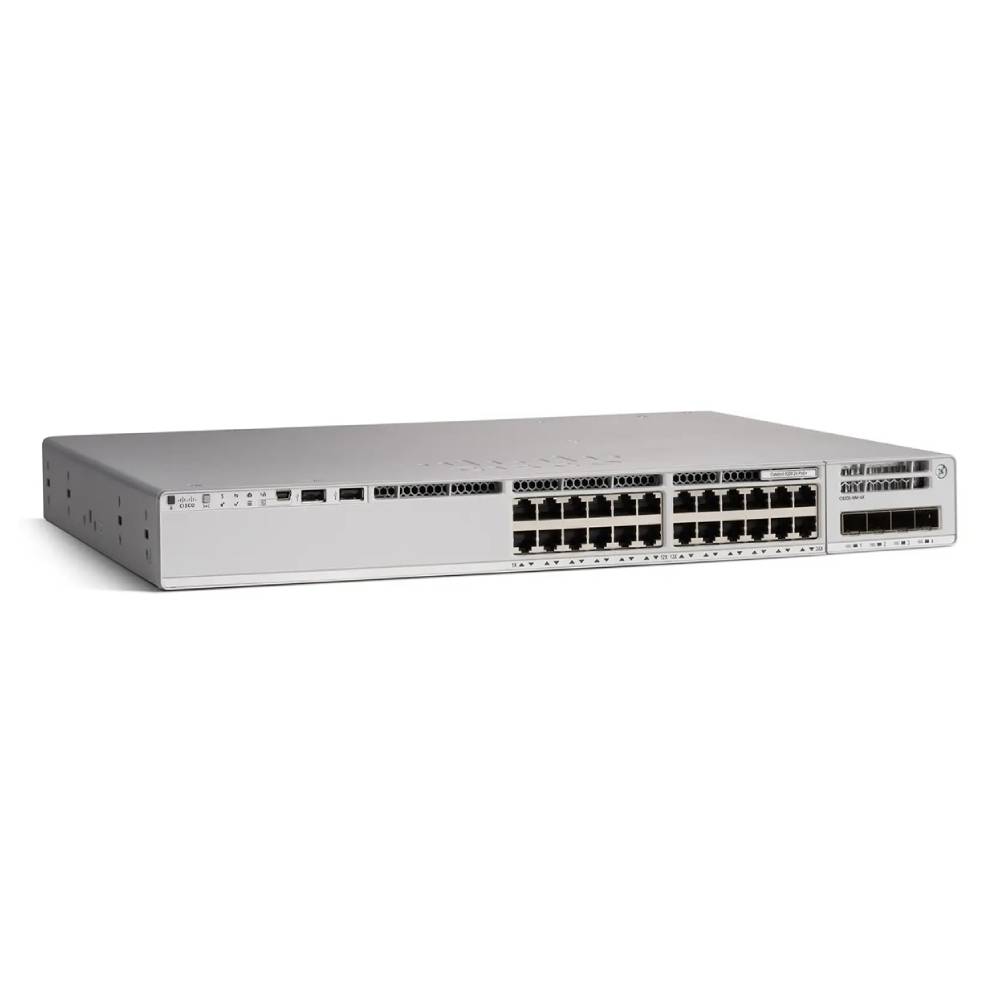

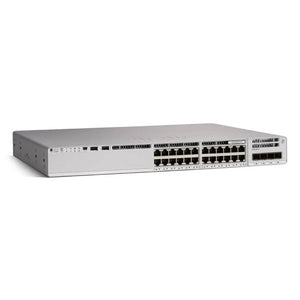

Cisco Catalyst 9200 24-Port Gigabit Switch | Modular Uplink | Network Advantage | C9200-24T-A

Product Description:

The Cisco Catalyst 9200 Series C9200-24T-A is a high-performance, enterprise-class 24-port Gigabit Ethernet switch designed for modern networking needs. It delivers scalability, security, and energy efficiency, making it an excellent choice for businesses, branch offices, and enterprise networks.

With modular uplink options, advanced security features, and Cisco’s Network Advantage software, this switch ensures seamless connectivity, robust network performance, and enhanced security. Stackable architecture allows for high availability and simplified network management.

Key Features & Benefits:

24 x Gigabit Ethernet Ports – High-speed connectivity for wired networking
Modular Uplink Options – Supports 1G, 10G, and 25G uplinks for flexible scalability
Cisco Network Advantage License – Advanced security, automation, and analytics
Layer 3 Routing Capabilities – Dynamic routing, OSPF, EIGRP, BGP, and IPv6 support
Stacking Support – Cisco StackWise-160 enables up to 160 Gbps stacking bandwidth
Security & Compliance – Built-in MACsec encryption, TrustSec, Secure Boot, and Encrypted Traffic Analytics
Energy Efficient – Cisco EnergyWise® technology for reduced power consumption
Cloud & Automation Ready – Compatible with Cisco DNA Center & Software-Defined Access (SD-Access)

Technical Specifications:

Model: Cisco Catalyst C9200-24T-A

Ethernet Ports: 24 x Gigabit Ethernet (10/100/1000 Mbps) RJ-45 ports

Uplink Module Support: Modular uplinks with 1G, 10G, and 25G options

Switching Capacity: 128 Gbps

Forwarding Rate: 190.4 Mpps (Million packets per second)

Stacking: Cisco StackWise-160 (Up to 8 switches, 160 Gbps stacking bandwidth)

Network Advantage License: Advanced Layer 3 routing, security, and automation

Security Features: 802.1X, MACsec encryption, TrustSec, Secure Boot, Encrypted Traffic Analytics

Power Supply: Default 600W AC power supply, supports redundant power options

Management: Cisco DNA Center, CLI, SNMP, NETCONF, RESTCONF, and Web UI

Dimensions: 1RU form factor, rack-mountable

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Compliance: RoHS, CE, FCC, UL Certified

Applications & Compatibility:

Ideal for SMBs, Enterprises, and Branch Networks
Supports Campus Networks, Data Centers, and Cloud Integration
Compatible with Cisco DNA, Cisco Prime, and Network Automation Tools
Perfect for VoIP, Video Streaming, and High-Performance Data Transfers
